Product Description
THE MAIN USE AND THE MARIN APPLICATION
This Best jaw crusher machine in China is suitable for pharmaceutical, chemical, metallurgy, food, construction, and other industries. The processing of hard and difficult-to-crush materials, including plastics, copper wires, etc., can also be used as supporting equipment for the pre-processing of micro-pulverization processing.
CHARACTERISTICS
The machine adopts a horizontal crushing mechanism, which is not limited by the viscosity, hardness, softness, etc. of the material, and can play a better crushing effect on any material.
HOW IT WORKS PRINCIPLE

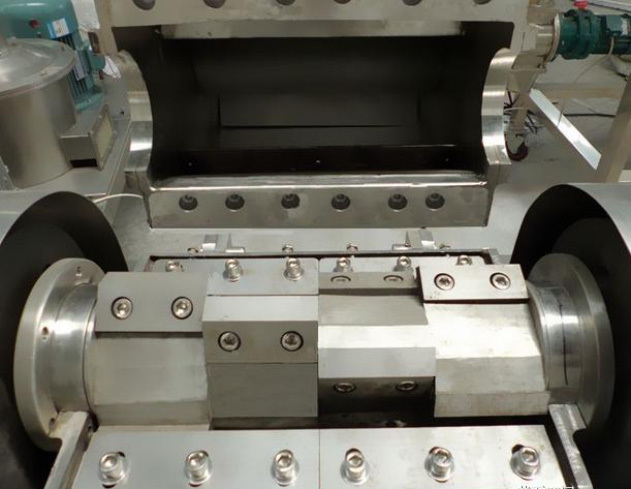

The material is sent into the crushing chamber of the Best jaw crusher machine in China by the feeding hopper, and through the impact of the blade and the tool holder, the horizontal rotary knife and the horizontal fixed knife are sheared and crushed at the same time, and the material automatically flows to the outlet due to the action of the rotary centrifugal force.
TECHNICAL PARAMETERS
| Model | CSJ-P30 | CSJ-P40 | CSJ-P60 | CSJ-P80 | CSJ-P100 |
| Production capacity (kg/h) | 50-200 | 100-500 | 150-700 | 200-1000 | 250-1200 |
Feed particle size (mm) Size of input granules | ≤100 | ≤300 | ≤400 | ≤500 | ≤600 |
Discharging particle size (mm) Size of output granules | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
| Power (kW) | 4 | 5 | 11 | 18.5 | 30 |
| Speed of principal axis | 500 | 500 | 500 | 400 | 320 |
Overall Dimension (L*W*H) (mm) | 600*500*1000 | 700*800*1100 | 890*900*1600 | 1285*1080*1700 | 1480*1200*1850 |
| Weight (kg) | 320 | 500 | 620 | 1000 | 1200 |

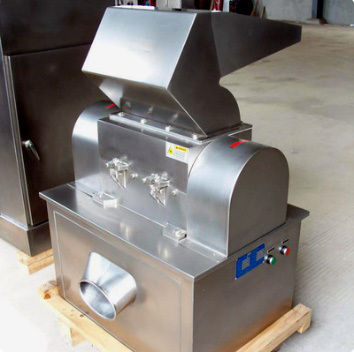

CSJ-P powerful coarse crusher
Main use MAIN APPLICATION This machine is suitable for pharmaceutical, chemical, metallurgy, food, construction, and other industries. The processing of hard and difficult-to-crush materials, including plastics, copper wires, etc., can also be used as supporting equipment for the pre-process of micro-pulverization processing
Get in touch for more information or to arrange a demo:
Products Category
Product Description
THE MAIN USE AND THE MARIN APPLICATION
This Best jaw crusher machine in China is suitable for pharmaceutical, chemical, metallurgy, food, construction, and other industries. The processing of hard and difficult-to-crush materials, including plastics, copper wires, etc., can also be used as supporting equipment for the pre-processing of micro-pulverization processing.
CHARACTERISTICS
The machine adopts a horizontal crushing mechanism, which is not limited by the viscosity, hardness, softness, etc. of the material, and can play a better crushing effect on any material.
HOW IT WORKS PRINCIPLE
The material is sent into the crushing chamber of the Best jaw crusher machine in China by the feeding hopper, and through the impact of the blade and the tool holder, the horizontal rotary knife and the horizontal fixed knife are sheared and crushed at the same time, and the material automatically flows to the outlet due to the action of the rotary centrifugal force.
TECHNICAL PARAMETERS
| Model | CSJ-P30 | CSJ-P40 | CSJ-P60 | CSJ-P80 | CSJ-P100 |
| Production capacity (kg/h) | 50-200 | 100-500 | 150-700 | 200-1000 | 250-1200 |
Feed particle size (mm) Size of input granules | ≤100 | ≤300 | ≤400 | ≤500 | ≤600 |
Discharging particle size (mm) Size of output granules | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
| Power (kW) | 4 | 5 | 11 | 18.5 | 30 |
| Speed of principal axis | 500 | 500 | 500 | 400 | 320 |
Overall Dimension (L*W*H) (mm) | 600*500*1000 | 700*800*1100 | 890*900*1600 | 1285*1080*1700 | 1480*1200*1850 |
| Weight (kg) | 320 | 500 | 620 | 1000 | 1200 |
说明页内容……
Packaging Delivery
WHO IS PEIXIN?
Jiangyin Peixin Machinery Technology Co.,Ltd has 15 year experences in Powder Processing Equipment. The company is a comprehensive production enterprise that integrates equipment technology R &D, production, sales, and after-sales service. It specializes in producing high-performance ultrafine grinder and related mechanical equipment. As a specialized production enterprise in the field of powder technology, Peixin Machinery has established a high status and reputation in the powder industry through years of technological accumulation and research and development production advantages.
Certification
Contact Us
Fill all information details to consult with us we will be happy to help you!
Customer Visit
FAQ
How about your payment term?
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted. Please seek the advice from the individual sales manager whom you work with.
4. Video / CD of test running and installation, Maunal book, tool box sent with machine
What's your shipping item process?
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.
If your need, we can help you do custom clearance.
Packaging Details:
1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: Machine will be finished in about 25 workdays after payment.
What's your before & after service
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
4) ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
5) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
6) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
How to visit your company
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call us anytime you arrive Wuxi, i will go to pick you.
Can you give me guide on other machine To full my production line
YES ! Our company has a long history, we also can recommend you other machine supplier which we don't sale, like packing machine, filling machine, etc !!
What machine your company have can customized machine upon my needs
Yes, we also produce CRUSHER, GRINDER, MIXER, DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quotation.
Are you real factory or trading company
YES ! We are real and most reliable factory here. Welcome you visit us anytime! After compare, you will know we are most expert and big factory here!!
