Product Description
Advantages and Characteristics
1.Uniform Mixing
2.High-Efficiency
3.Versatile Applications
4.Simple & Durable Design
5.Space-Saving
6.Eco-Friendly and Low Noise
Application area
* Chemical Industry
* Pharmaceutical Industry
* Food Industry
* New Materials Industry
* Mineral Processing
* Battery Materials
* Ceramic Industry
* Pesticide Industry
* Pigment & Dye Industry

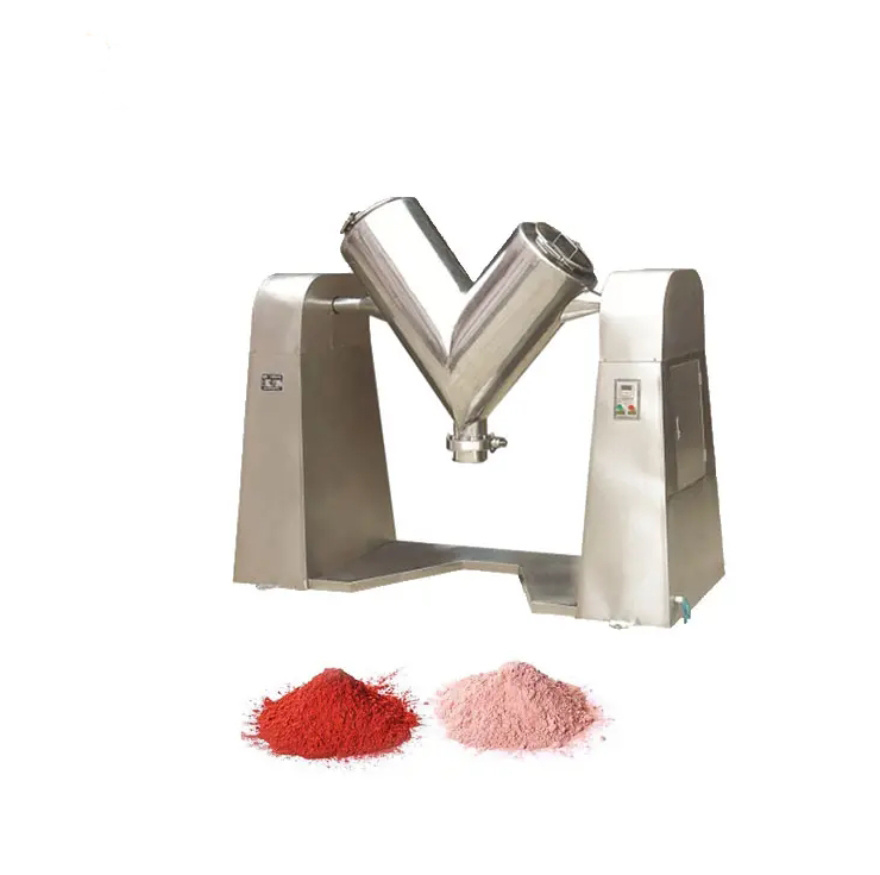

Gaolin Powder
|
|

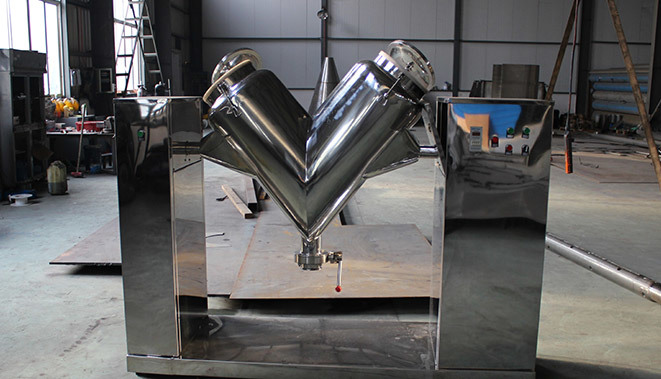

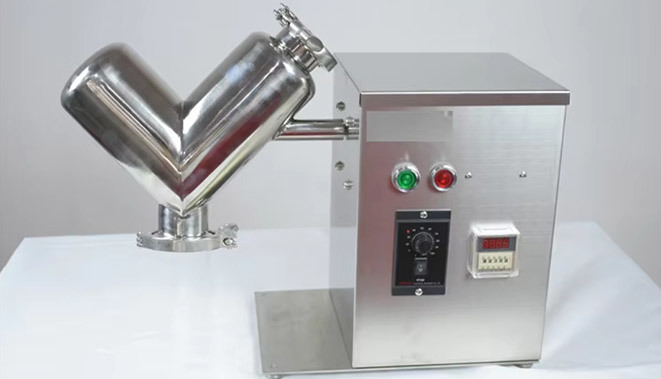

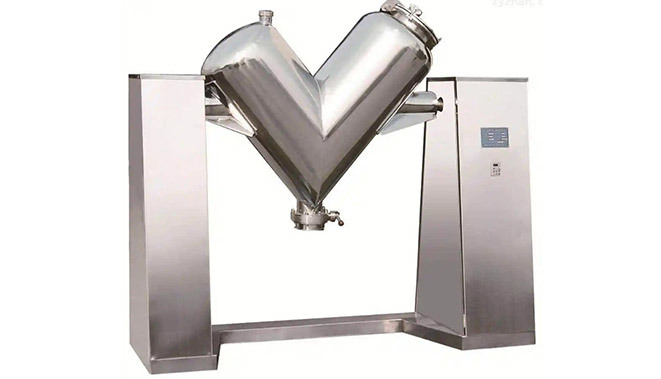

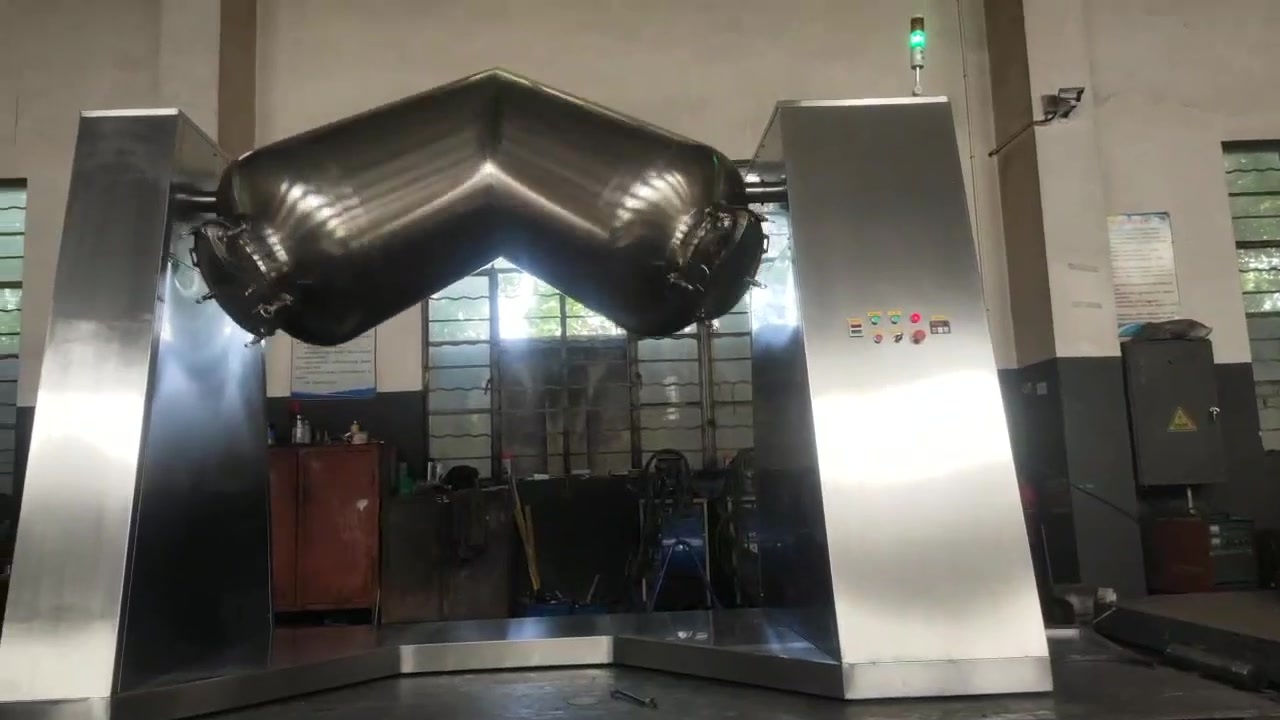

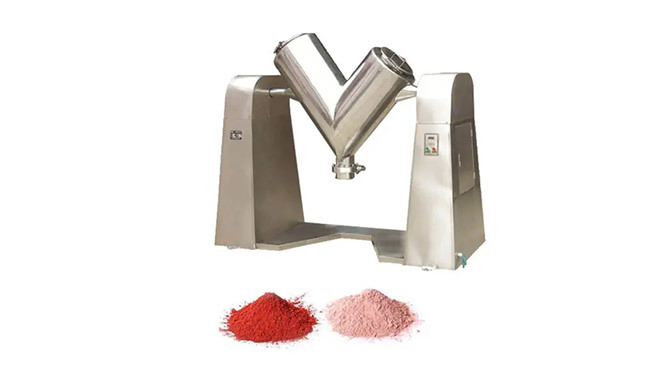

V type mixer2
|
|
V type mixer4
|
|
V type mixer1
V type mixer3
V type mixer5

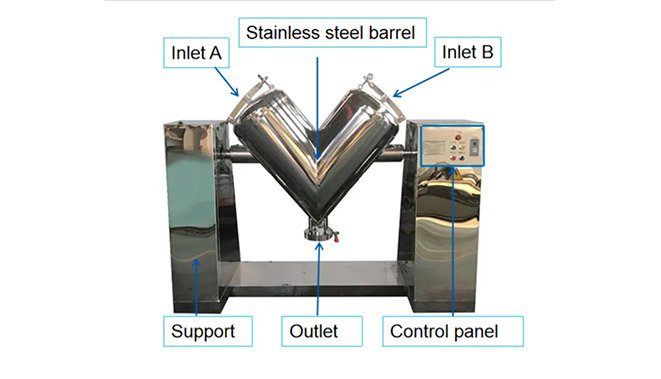

Equipment composition

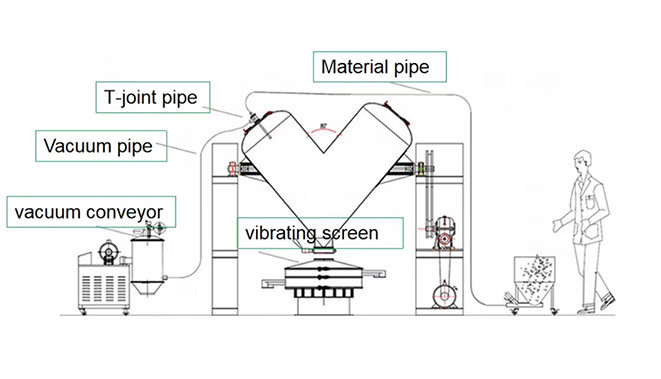

Structure: Consists of two shells of different or same heights, driven by mechanical transmission.
 | 1. Mirror polished of inner and outer shell to meet GMP standard. 2. No blind angle in the V-shells, no accumulation of materials,high speed I-bar,efficient and short mixing time. 3. Mixing uniformity can reach 99% 4. Rotating valve is equipped for discharging 5. Fully integrated motors and controls 6. Can work with vacuum feeding system to create dust-free working condition. 7.Capacity Range: Mixing chamber volume ranges from 50L to 2000L. |
Technical Parramerters
| Model | GHJ-50V | GHJ-100V | GHJ-100V | GHJ-100V | GHJ-1000V | GHJ-1000V | GHJ-1500V | GHJ-2500V | GHJ-4000V | GHJ-6000V |
| Production capacity (L/batch) | 35 | 70 | 140 | 210 | 350 | 700 | 1,050 | 1,750 | 2,800 | 4,200 |
| Mixing time (Min) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
| Full volume (m³) | 0.05 | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.5 | 4.0 | 6.0 |
| Cylinder rotation speed (rpm) | 0-20 | 0-15 | 0-15 | 0-12 | 0-12 | 0-10 | 0-10 | 0-8 | 0-6 | 0-5 |
| Motor Power (kw) | 0.75 | 1.1 | 2.2 | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 | 11.0 | 15.0 |
| Total height of rotation (mm) | 1,150 | 1,520 | 1,800 | 1,850 | 2,450 | 3,000 | 3,100 | 3,790 | 4,200 | 4,380 |

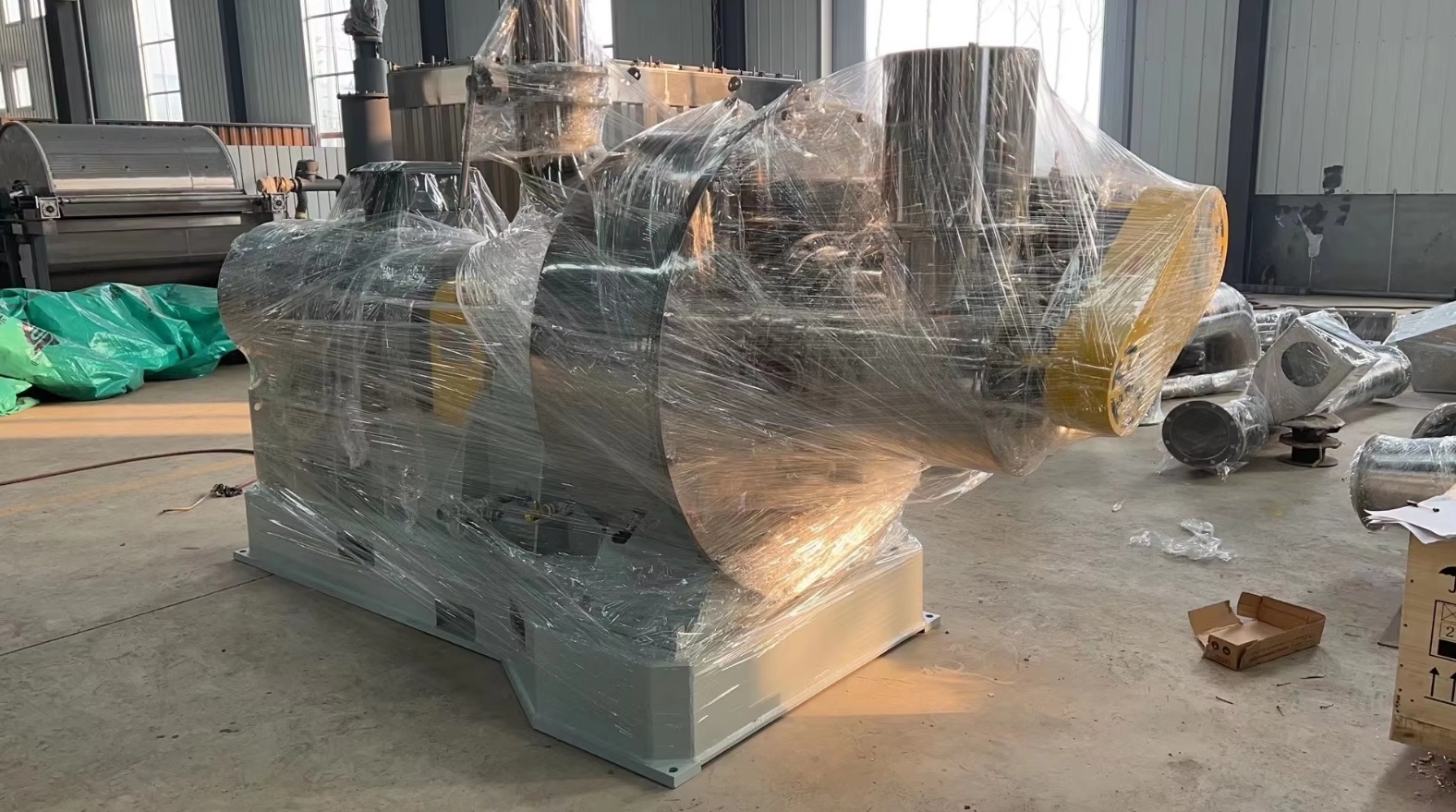

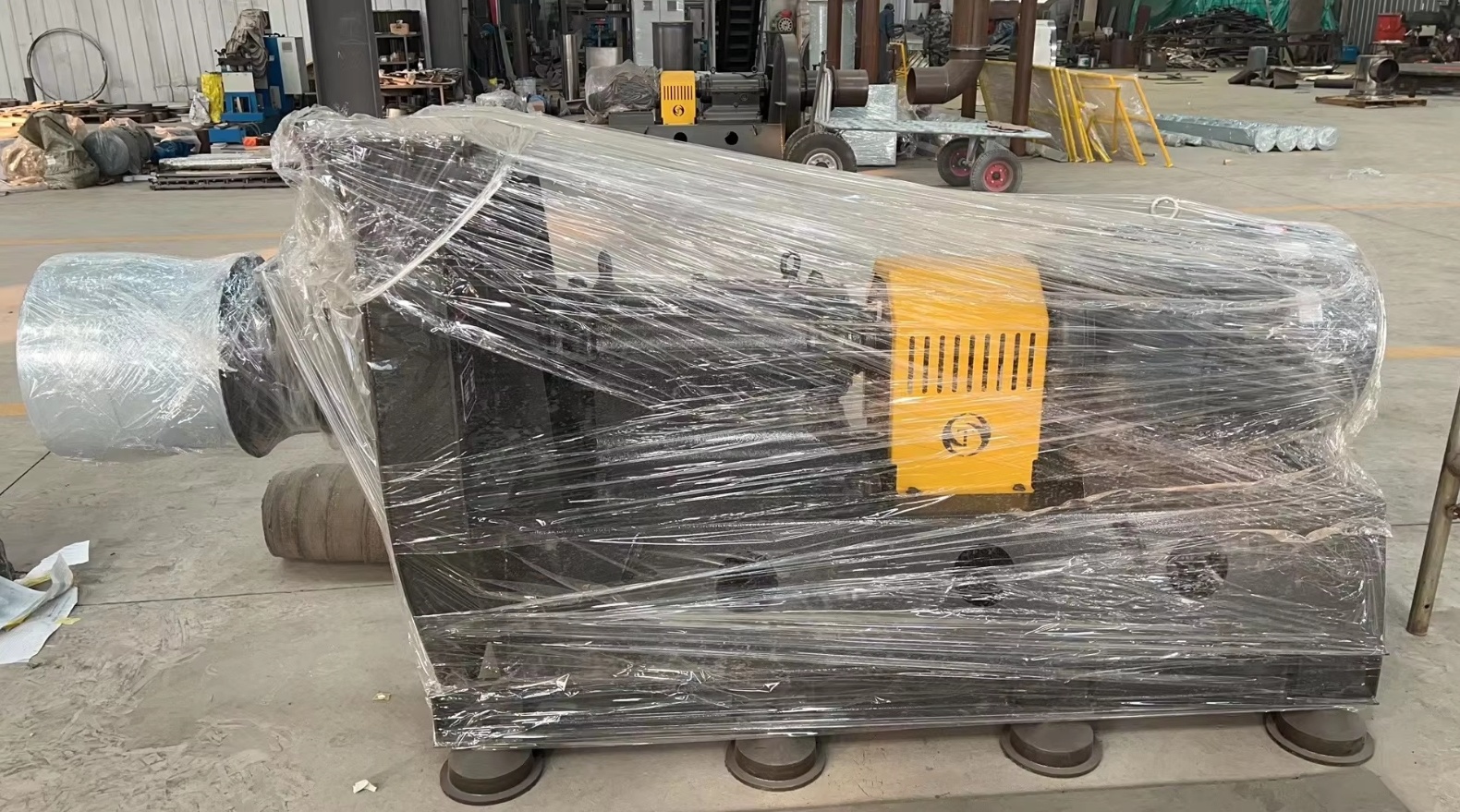

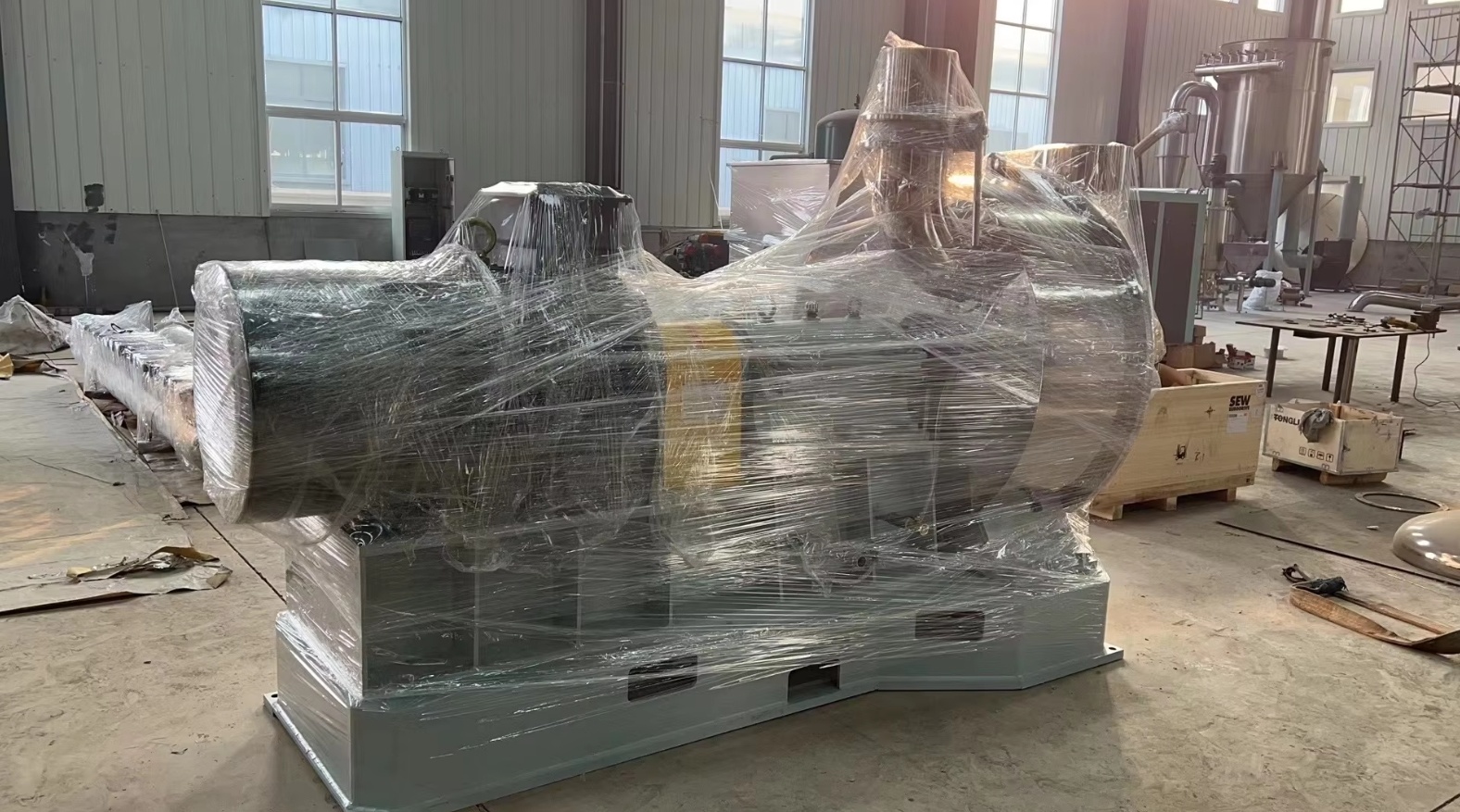

Packaging and transportation
V-type mixer4
V-type mixer3
V-type mixer2
V-type mixer
V-mixer
The company mainly produces pharmaceutical, chemical, chemical fiber, food, metallurgy and other mechanical products.
Get in touch for more information or to arrange a demo:
Products Category
Product Description
Advantages and Characteristics
1.Uniform Mixing
2.High-Efficiency
3.Versatile Applications
4.Simple & Durable Design
5.Space-Saving
6.Eco-Friendly and Low Noise
Application area
* Chemical Industry
* Pharmaceutical Industry
* Food Industry
* New Materials Industry
* Mineral Processing
* Battery Materials
* Ceramic Industry
* Pesticide Industry
* Pigment & Dye Industry
Gaolin Powder
|
|
V type mixer2
|
|
V type mixer4
|
|
Equipment composition
Structure: Consists of two shells of different or same heights, driven by mechanical transmission.
| 1. Mirror polished of inner and outer shell to meet GMP standard. 2. No blind angle in the V-shells, no accumulation of materials,high speed I-bar,efficient and short mixing time. 3. Mixing uniformity can reach 99% 4. Rotating valve is equipped for discharging 5. Fully integrated motors and controls 6. Can work with vacuum feeding system to create dust-free working condition. 7.Capacity Range: Mixing chamber volume ranges from 50L to 2000L. |
Technical Parramerters
| Model | GHJ-50V | GHJ-100V | GHJ-100V | GHJ-100V | GHJ-1000V | GHJ-1000V | GHJ-1500V | GHJ-2500V | GHJ-4000V | GHJ-6000V |
| Production capacity (L/batch) | 35 | 70 | 140 | 210 | 350 | 700 | 1,050 | 1,750 | 2,800 | 4,200 |
| Mixing time (Min) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
| Full volume (m³) | 0.05 | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.5 | 4.0 | 6.0 |
| Cylinder rotation speed (rpm) | 0-20 | 0-15 | 0-15 | 0-12 | 0-12 | 0-10 | 0-10 | 0-8 | 0-6 | 0-5 |
| Motor Power (kw) | 0.75 | 1.1 | 2.2 | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 | 11.0 | 15.0 |
| Total height of rotation (mm) | 1,150 | 1,520 | 1,800 | 1,850 | 2,450 | 3,000 | 3,100 | 3,790 | 4,200 | 4,380 |
Packaging and transportation
说明页内容……

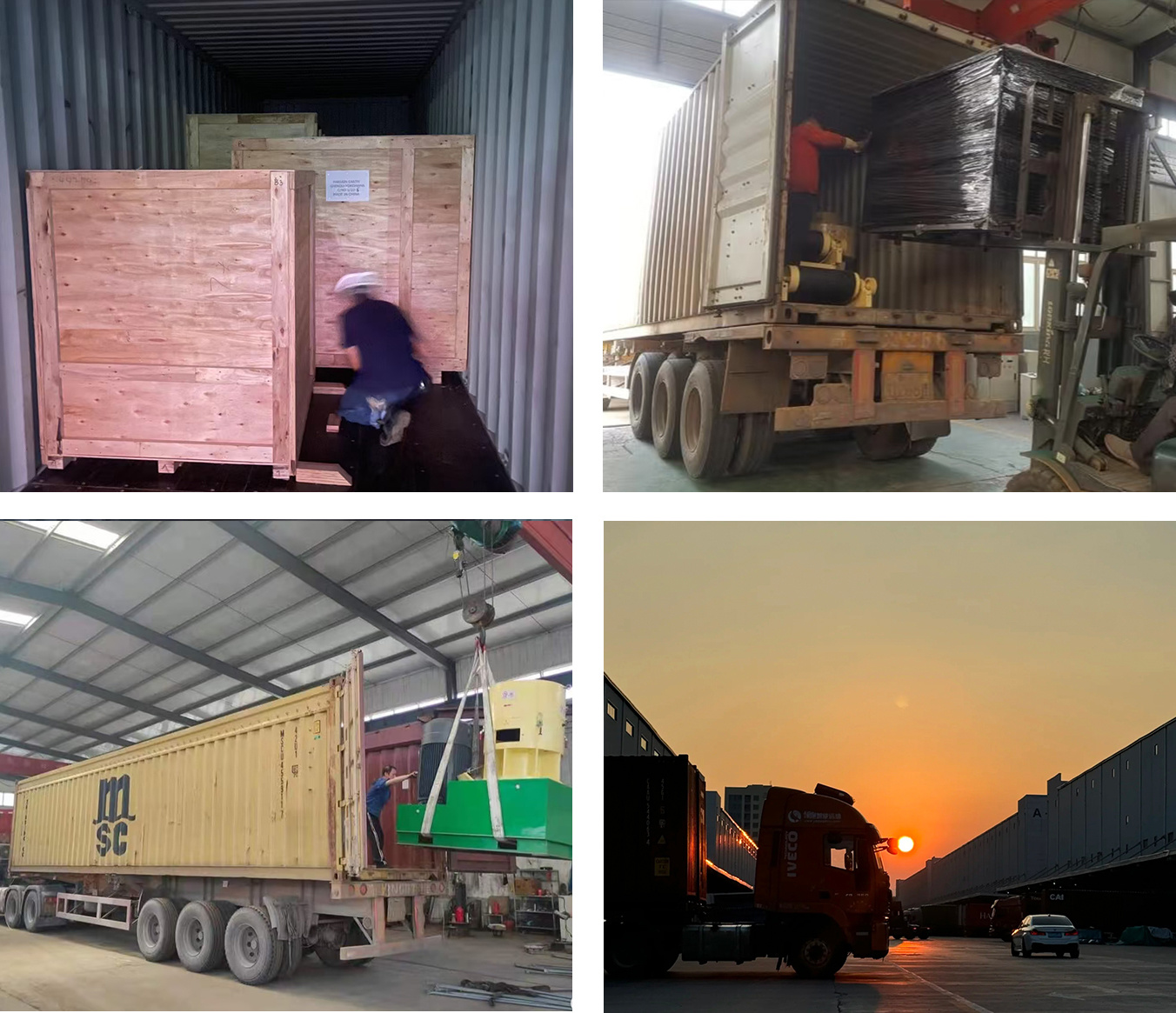

Packaging Delivery

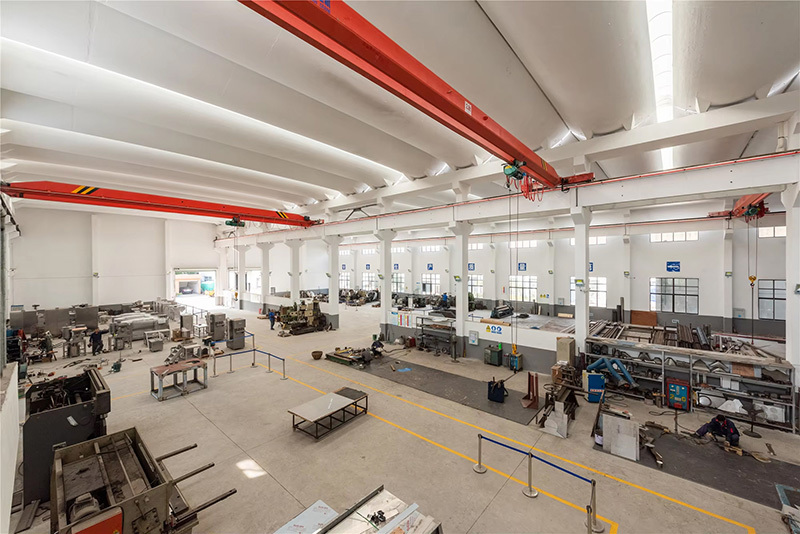

WHO IS PEIXIN?
Jiangyin Peixin Machinery Technology Co.,Ltd has 15 year experences in Powder Processing Equipment. The company is a comprehensive production enterprise that integrates equipment technology R &D, production, sales, and after-sales service. It specializes in producing high-performance ultrafine grinder and related mechanical equipment. As a specialized production enterprise in the field of powder technology, Peixin Machinery has established a high status and reputation in the powder industry through years of technological accumulation and research and development production advantages.
Certification
Contact Us
Fill all information details to consult with us we will be happy to help you!
Customer Visit
FAQ
How about your payment term?
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted. Please seek the advice from the individual sales manager whom you work with.
4. Video / CD of test running and installation, Maunal book, tool box sent with machine
What's your shipping item process?
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.
If your need, we can help you do custom clearance.
Packaging Details:
1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: Machine will be finished in about 25 workdays after payment.
What's your before & after service
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
4) ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
5) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
6) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
How to visit your company
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call us anytime you arrive Wuxi, i will go to pick you.
Can you give me guide on other machine To full my production line
YES ! Our company has a long history, we also can recommend you other machine supplier which we don't sale, like packing machine, filling machine, etc !!
What machine your company have can customized machine upon my needs
Yes, we also produce CRUSHER, GRINDER, MIXER, DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quotation.
Are you real factory or trading company
YES ! We are real and most reliable factory here. Welcome you visit us anytime! After compare, you will know we are most expert and big factory here!!
