Product Description
THE MAIN USE AND THE MARIN APPLICATION
A high efficiency three-dimensional swing mixer is widely used in the mixing of dry powder materials in pharmaceutical, chemical, food, and other industries, several materials with different specific gravities and different particle sizes can also be quickly and uniformly mixed, and the mixing uniformity can reach 99%.
CHARACTERISTICS
The customized high efficiency mixer equipment is designed and manufactured in strict compliance with FDA, GMP, and CGMP specifications: triangular swing, translation rotation, and rock and roll principles, producing powerful alternating pulse motion, excellent mixing effect; Modular design, easy to disassemble and clean.
TECHNICAL PARAMETERS
Model | SBH-10 | SBH-25 | SBH-50 | SBH-100 | SBH-200 | SBH-400 | SBH-600 | SBH-800 | SBH-1000 | SBH-1200 | SBH-1500 |
Barrel volume(L) | 10 | 25 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 |
Largest loading volume (L) Max loading volume | 7 | 17 | 35 | 70 | 140 | 280 | 420 | 560 | 700 | 840 | 1050 |
Spindle speed（r/min） | 0-20 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-11 | 0-10 | 0-10 | 0-10 | 0-10 |
| Motor power (kW) | 0.55 | 0.75 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Overall Dimension (L*W*H) (mm) | 640*620*550 | 900*900*75 | 970*950*120 | 1200*1600*1500 | 1400*1800*1600 | 1700*2100*1850 | 2100*2400*2250 | 2200*2500*2300 | 2400*2800*2550 | 2500*3100*2600 | 2800*3600*3200 |
| Weight (kg) | 120 | 150 | 300 | 500 | 800 | 1200 | 1200 | 2000 | 2500 | 2800 | 3000 |

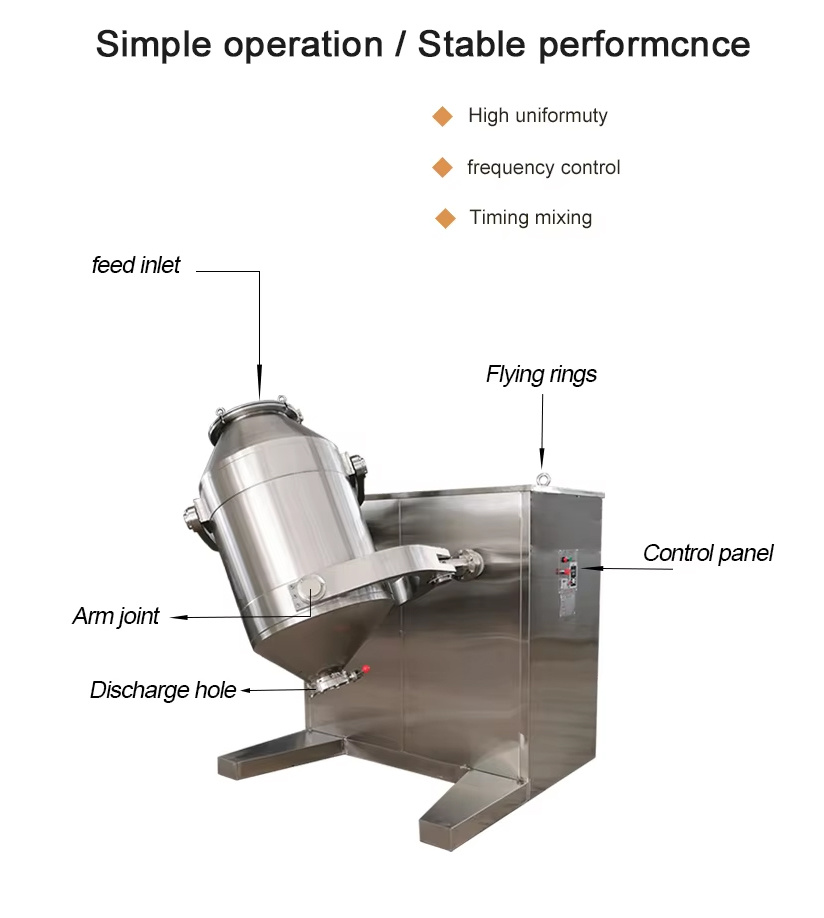

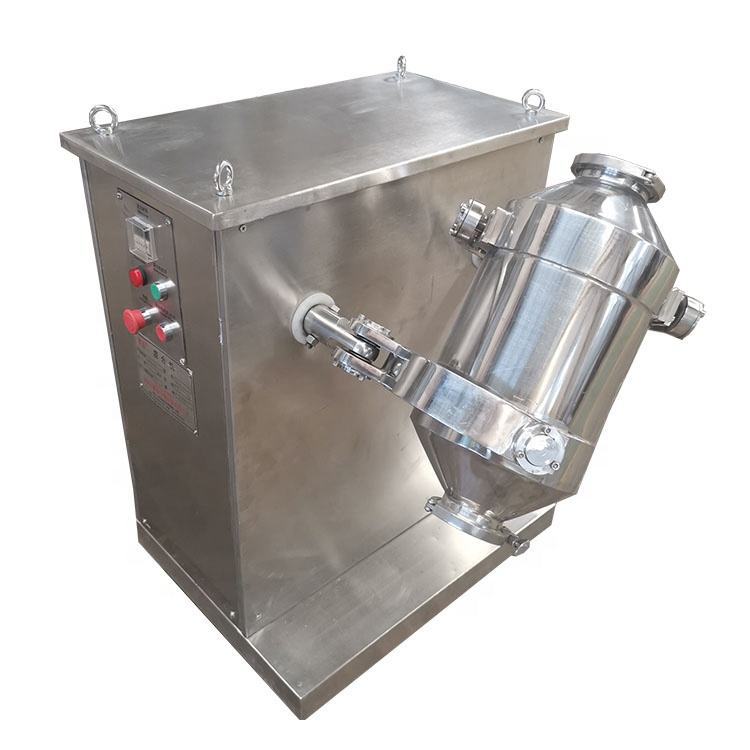

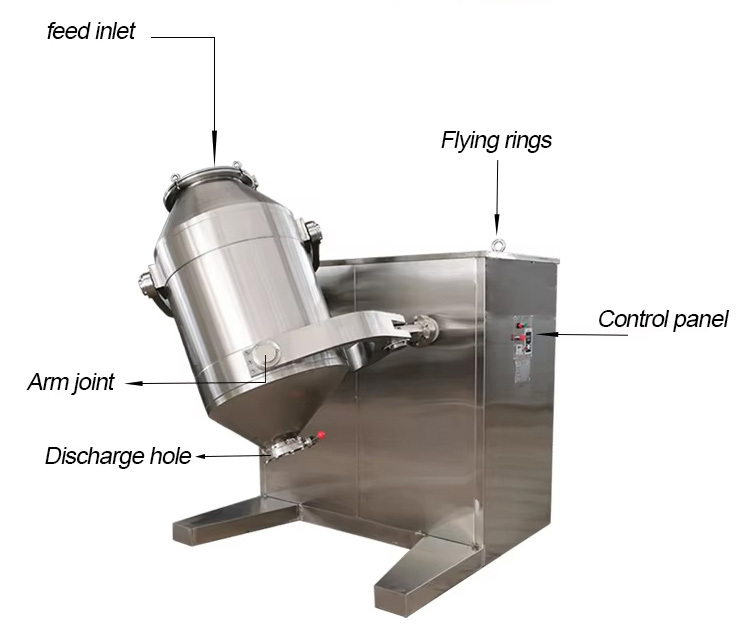

SBH series three-dimensional swing mixer
THE MAIN USE AND THE MARIN APPLICATION A high efficiency three-dimensional swing mixer is widely used in the mixing of dry powder materials in pharmaceutical, chemical, food, and other industries, several materials with different specific gravities and different particle sizes can also be quickly and uniformly mixed, and the mixing uniformity can reach 99%.
Get in touch for more information or to arrange a demo:
Products Category
Product Description
THE MAIN USE AND THE MARIN APPLICATION
A high efficiency three-dimensional swing mixer is widely used in the mixing of dry powder materials in pharmaceutical, chemical, food, and other industries, several materials with different specific gravities and different particle sizes can also be quickly and uniformly mixed, and the mixing uniformity can reach 99%.
CHARACTERISTICS
The customized high efficiency mixer equipment is designed and manufactured in strict compliance with FDA, GMP, and CGMP specifications: triangular swing, translation rotation, and rock and roll principles, producing powerful alternating pulse motion, excellent mixing effect; Modular design, easy to disassemble and clean.
TECHNICAL PARAMETERS
Model | SBH-10 | SBH-25 | SBH-50 | SBH-100 | SBH-200 | SBH-400 | SBH-600 | SBH-800 | SBH-1000 | SBH-1200 | SBH-1500 |
Barrel volume(L) | 10 | 25 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 |
Largest loading volume (L) Max loading volume | 7 | 17 | 35 | 70 | 140 | 280 | 420 | 560 | 700 | 840 | 1050 |
Spindle speed（r/min） | 0-20 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-11 | 0-10 | 0-10 | 0-10 | 0-10 |
| Motor power (kW) | 0.55 | 0.75 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Overall Dimension (L*W*H) (mm) | 640*620*550 | 900*900*75 | 970*950*120 | 1200*1600*1500 | 1400*1800*1600 | 1700*2100*1850 | 2100*2400*2250 | 2200*2500*2300 | 2400*2800*2550 | 2500*3100*2600 | 2800*3600*3200 |
| Weight (kg) | 120 | 150 | 300 | 500 | 800 | 1200 | 1200 | 2000 | 2500 | 2800 | 3000 |
