Product Description
Product description
Introduction to Universal Crusher: This machine is suitable for crushing and processing various types of Chinese herbal medicines, precious medicinal materials, ores, and chemical raw materials in pharmaceutical, food, chemical, metallurgical, geological, agricultural, scientific research and other units. The entire product is made of stainless steel, and the contact material is made of 304 stainless steel. It is horizontally and vertically fed, with a fast feeding speed and a fineness of 20-120 mesh. The working principle is that the main shaft of the machine is driven by an electric motor to rotate at high speed, and the movable and fixed disks collide and rub against each other, resulting in crushing. The crushed material is subjected to centrifugal force and filtered through sieve holes before entering the capture bag.
Main configuration
| Serial Number | Name | Specifications and Model Number | Quantity | Material | Thickness |
| 1 | Front Panel | 1 | SUS304 | 18MM | |
| 2 | Rear door panel | 1 | SUS304 | 18MM | |
| 3 | Machine cavity plate | 1 | SUS304 | 18MM | |
| 4 | Outer plate | SUS304 | 1.5MM | ||
| 6 | Motor | 7.5KW | 1 | ||
| 7 | Electrical assembly | ||||
| 8 | Axis | 1 | 2Cr13 quenched and tempered | ||
| 9 | Bearings | 80308 | 2 | ||
| 10 | Power Supply | 380V 50Hz | |||
| 11 | Main shaft speed | 3800 r/min | |||
| 12 | Cooling method | Water cooling (machine cavity, bearing housing) |
grinding1
grinding2

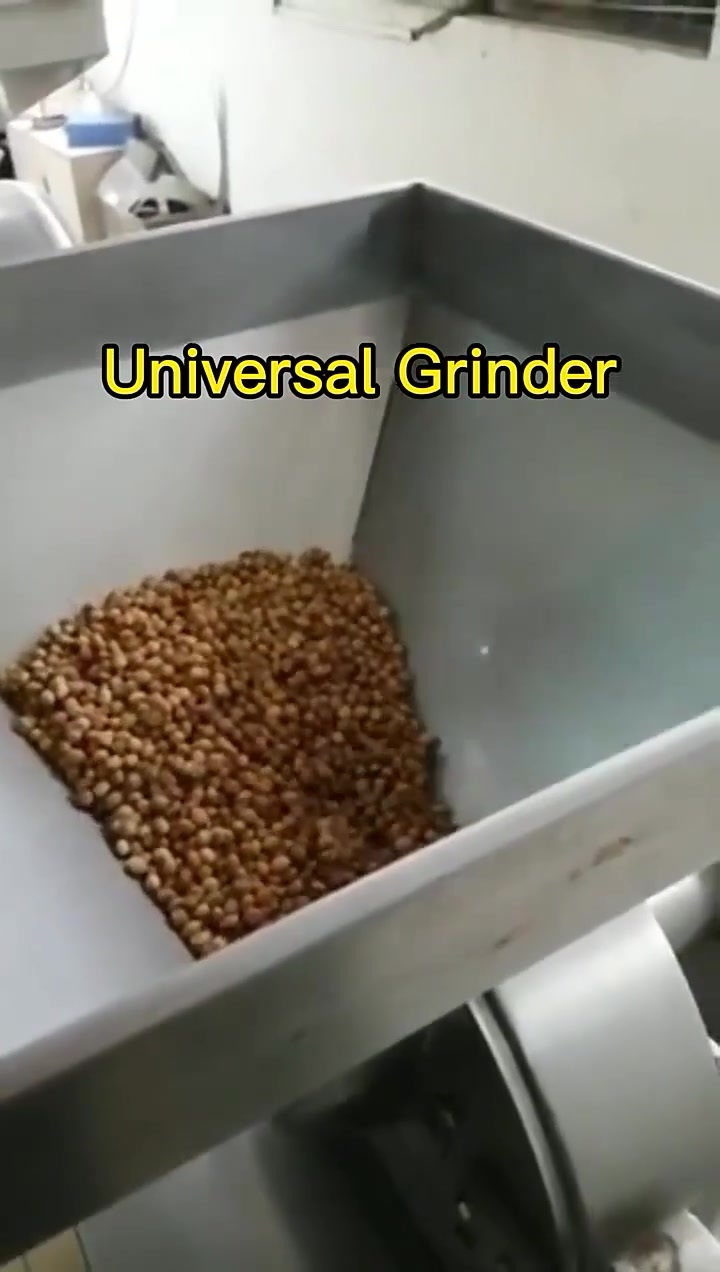

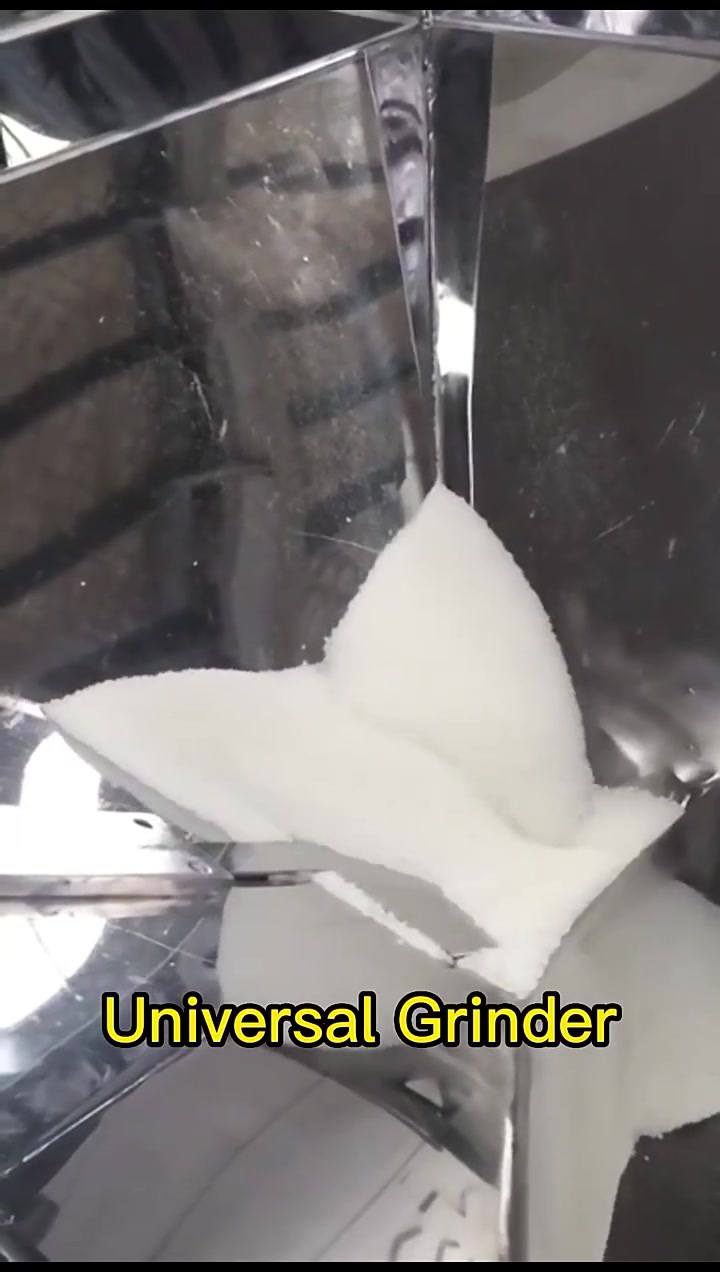

WF-30B Universal Crusher Single Machine
Feed size: ≤6 mm Grinding fineness: 20–120 mesh Production capacity: 200–300 kg/hour Delivery time: 25 days
Get in touch for more information or to arrange a demo:
Products Category
Product Description
Product description
Introduction to Universal Crusher: This machine is suitable for crushing and processing various types of Chinese herbal medicines, precious medicinal materials, ores, and chemical raw materials in pharmaceutical, food, chemical, metallurgical, geological, agricultural, scientific research and other units. The entire product is made of stainless steel, and the contact material is made of 304 stainless steel. It is horizontally and vertically fed, with a fast feeding speed and a fineness of 20-120 mesh. The working principle is that the main shaft of the machine is driven by an electric motor to rotate at high speed, and the movable and fixed disks collide and rub against each other, resulting in crushing. The crushed material is subjected to centrifugal force and filtered through sieve holes before entering the capture bag.
Main configuration
| Serial Number | Name | Specifications and Model Number | Quantity | Material | Thickness |
| 1 | Front Panel | 1 | SUS304 | 18MM | |
| 2 | Rear door panel | 1 | SUS304 | 18MM | |
| 3 | Machine cavity plate | 1 | SUS304 | 18MM | |
| 4 | Outer plate | SUS304 | 1.5MM | ||
| 6 | Motor | 7.5KW | 1 | ||
| 7 | Electrical assembly | ||||
| 8 | Axis | 1 | 2Cr13 quenched and tempered | ||
| 9 | Bearings | 80308 | 2 | ||
| 10 | Power Supply | 380V 50Hz | |||
| 11 | Main shaft speed | 3800 r/min | |||
| 12 | Cooling method | Water cooling (machine cavity, bearing housing) |
说明页内容……

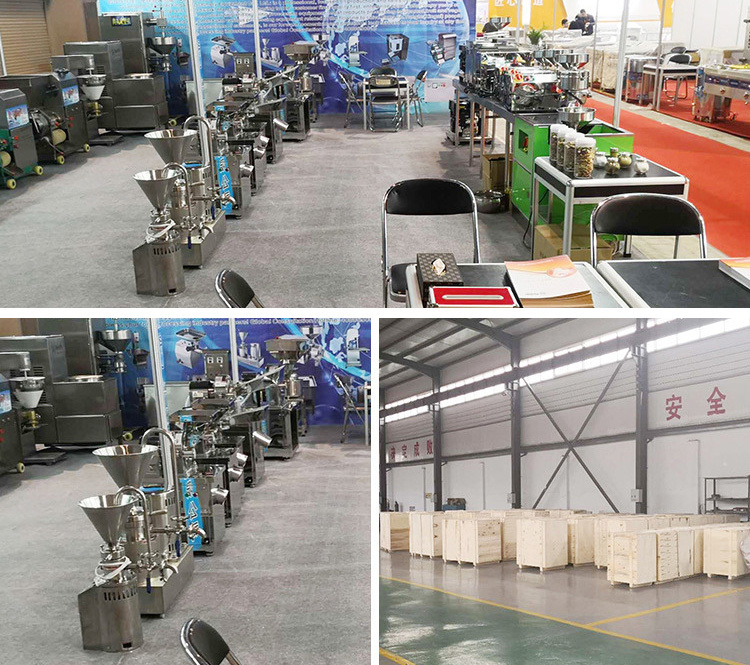

Packaging Delivery
