Product Description
OVERVIEW OF OVERVIEW

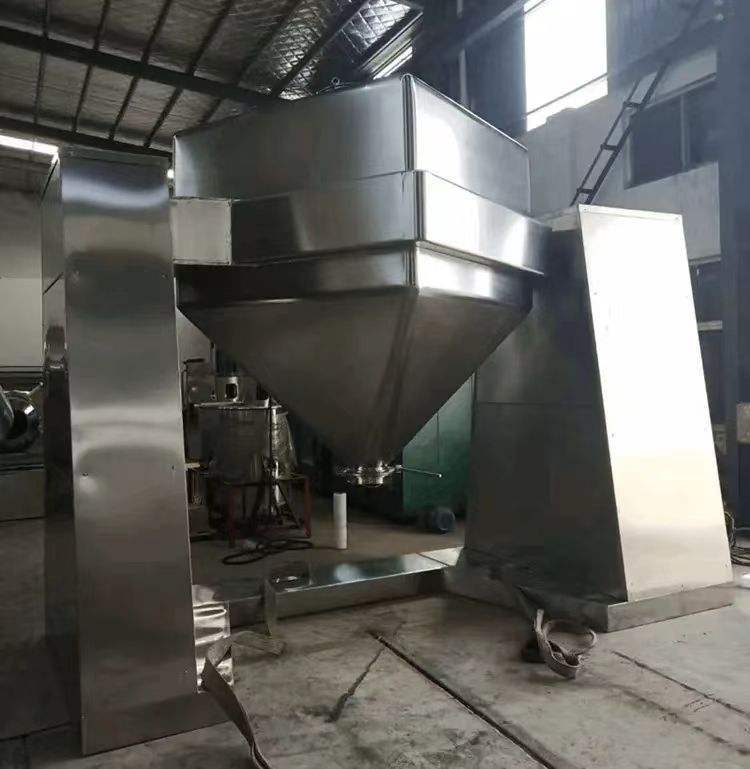

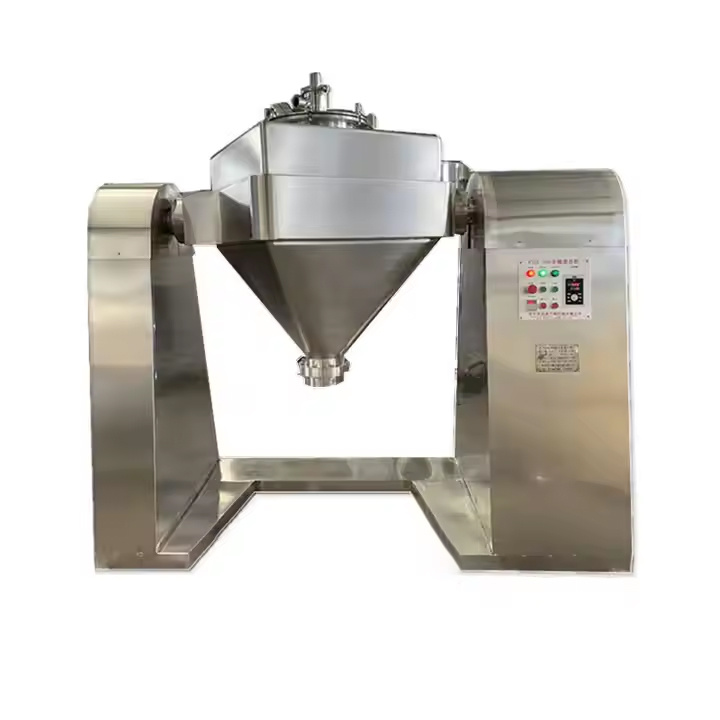

The Cheapest square cone mixer machine in China loads the materials into a square conical closed mixing barrel, the symmetrical axis of the hopper, the line, and the axis of the rotary axis are at an angle, and the materials of different components move in three-dimensional space in the closed hopper material, resulting in strong flipping and diffusion contraction to achieve the mixing effect.
PERFORMANCE CHARACTERISTICS CHARACTERISTICS
1. The whole machine has a novel design, compact structure, beautiful appearance, mixing uniformity of 99%, and volume charging coefficient of 08.
2. Low swing height, stable operation, reliable performance, and convenient operation.
3. The inner and outer walls of the barrel of the China cheapest square cone mixer are mirror-polished, with no dead corners, easy to unload, easy to clean and rinse, no cross-infection, and comply with GMP requirements.
TECHNICAL PARAMETERS
| Item Item | FZH-300 | FZH-500 | FZH-1000 | FZH-1500 | FZH-2000 | FZH-3000 |
Full volume (L) Total volume | 300 | 500 | 1000 | 1500 | 2000 | 3000 |
Largest charge volume (L) Charge volume | 210 | 350 | 700 | 1050 | 1400 | 2100 |
Largest charge weight (kg) Charge weight | 150 | 250 | 500 | 750 | 1000 | 1500 |
Spindle speed (r/min) Rotation speed of the main shaft | 0-14 | 0-13 | 0-12 | 0-10 | 0-8 | 0-6 |
| Motor power (kW) Motor power | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 |
| Inlet diameter | 380 | 380 | 560 | 560 | 560 | 560 |
| Outlet diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Overall Dimension (L*W*H) (mm) | 1850*1280*1970 | 2200*1550*2260 | 2800*2000*2850 | 2915*2300*2950 | 3160*2500*3200 | 3800*3200*3850 |
| Total weight (kg) | 500 | 700 | 1000 | 1500 | 2000 | 3000 |
